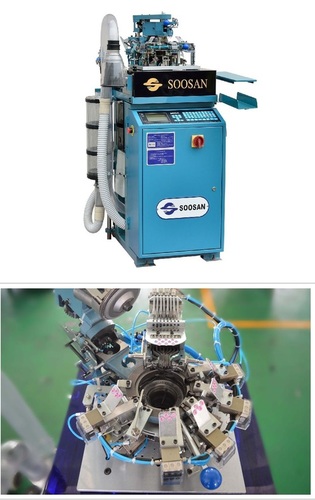

Socks Knitting Machine

Socks Knitting Machine
Socks Knitting Machine
Product Code : SS 605
Brand Name : PERFECT TEXTILE
Product Description

SS – 605 Series Socks Knitting Machine (Selected Terry)

Introduction



One feeder; 3.75”/4” single cylinder; 6fully computerized socks knitting machine; 6magnetic type of the actuators(16 fingers for each); 4 pickers(2 for lifting needles and 2 for lowering needles) or 3 pickers(2 for lifting needles and 1 for lowering needles).



Knitting scale



Single or double welt, full terry, half terry(for the up or down sides), minimum 2 colors on the heel and toe, tuck, mesh, jacquard, two-tone elastic, invisible socks, many kinds of heels(Y heel, big heel and small heel etc.), left & right socks, full elastic socks, 3-D socks, socks with 180degree reversed toe, selective terry socks and tubular fabric etc.



The detailed specification of product



1.    Production features:



Maximum 5 colors in the pattern plus one ground color on the single course, Maximum 4 colors in the pattern plus one ground color with the elastic on the single course and the total will be 18 colors(including 3 ground colors) within sock.



2.    Technical features:



8pcs yarn fingers for the main feeder, 2pcs yarn fingers for the elastic(two is optional), 15pcs yarn fingers for the colors in the pattern. The total equals to 25pcs yarn fingers.



Motorized stitch cams and cylinder, adjustable main yarn fingers, lubrication by pressure pump and it's possible to control yarn trimming length by the up and down movement of dial pad and the control of ring cutter's speed.



3.    The controller performance:



Automatically stop for the self-protect because of the needles' broken, insufficient compressed air, noOIL , malfunction of the cutter and the yarn's broken etc.



Installed with the UPS function, it's possible to continue knitting and save programs automatically.



The offer of Chinese, English and other languages exchange support.



The work of program for 3D effect is improved.





Model

Cylinder Diameter

(")

Function

Gauge

Needle Count

(N)

Max Running Speed (RPM)

Power Required (kw)

Plain

Terry

Drive Motor

Ring Blower Motor

Control Box

SS-605U

3 3/4"

Plain / terry

36-48

84-200

       350

       250

 1~1.1

≥1.1

    0.8

SS-605T

4"

Plain / terry

84-200

Net Weight (kg): 330                            Gross Weight (kg): 400

Floor Space(W*L*H)(cm): 145*110*240 (including yarn creel)

Packing Size(W*L*H)(cm): 95*110*180

Air consumption per machine: 0.05~0.07 m³/MIN

Air pressure per machine: 0.65MPa(6.5Kgf, 6.5Bar)

Rated power per machine: 2.9~3.3KW(440V=6.6A~7.5A, 380V=7.63A~8.68A, 220V=13.2A~15A)

Actual power per machine: 1.2~1.5KW(440V=2.72~3.41A, 380V=3.15~3.95A, 220V=5.45~6.81A)
